wire rope electric hoist from China manufacturer - Xinxiang Degong Machinery Co., Ltd

Price:	500.0~8000.0 USD
Payment Terms:	T/T
Place of Origin:	Henan, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: CD/MD/HC/HM

Production Capacity: 5000sets pers quater

Delivery Date: within one month after rece...

Power Source: Electric

Brand Name: DG

Maximum Lifting Height: 48m

Means of Transport: Ocean

Packing: plywood crate

Sling Type: Wire Rope

Usage: Drywall Panel Hoist

Maximum Lifting Weight: 100T

Lift Speed: according

1. single or double lifting speed
2. max capacity: 100T
3. easy to control and operate
4. exported many countries until now

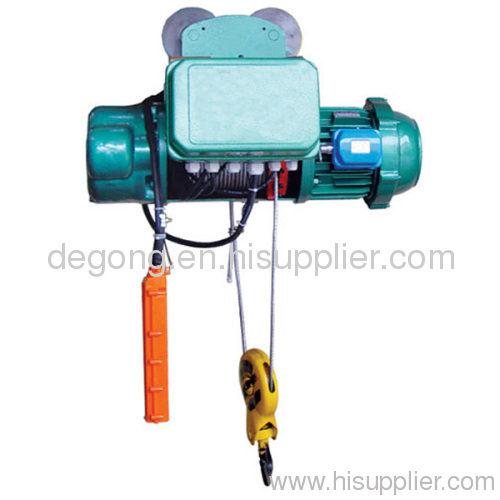

wire rope electric hoist
It is assembled by several parts: Hoisting Gear Box, Hoisting Motor with brake, Rope Drum, Electric Control Panel and Traveling Trolley. All these units are separately accessible and promptly disassembled cost and stopped.

1. Type CD1, MD1 wire-rope electric hoist is a kind of small-lifting equipment

2. It can be mounted on single beam overhead crane, gantry cranes, jib crane and so on.

3. Electric hoist as only one normal speed which can satisfy normal application

4. It is widely used in factories, mines, harbors, warehouses, cargo storage area and shops

5. Essentially in raising working efficiency and improving working conditions.

Model CD1
Capacity Tons 0.5 1 2 3 5 10 16
Hoisting height M 6,9,12 6,9,12,18,24,30 9,12,18,24,30
Hoisting speed M/MIN 8 8 7 3.5
Travel speed M/MIN 20/30 20/30 20/30 20/30 20/30 20/30 18
Wirerope Dia.(mm) 4.8 7.4 11 13 15 15 17.5
Spec. 6x37+FC 6x37+FC 6x37+FC 6x37+FC
Hoisting motor Type Type ZD121-4 ZD122-4 ZD131-4 ZD132-4 ZD141-4 ZD151-4 ZD151-4
Power Power(kW) 0.8 1.5 3 4.5 7.5 13 13
Rotation speed Rotation speed(r/min) 1380 1380 1380 1380 1400 1400 1400
Current (A) 2.2 4.3 7.6 11 18 30 30
Travel motor Type Type ZDY111-4 ZDY111-4 ZDY112-4 ZDY112-4 ZDY121-4 ZDY121-4 ZDY121-4
Power Power(kW) 0.2 0.2 0.4 0.4 0.8 0.8x2 0.8x2
Rotation speed Rotation speed(r/min) 1380 1380 1380 1380 1380 1380 1380
Current Current(A) 0.72 0.72 1.25 1.25 2.4 2.4 2.4
Power 3PAC 220v/230v/380v/400v/415v/440v380V,50HZ/60HZ,
